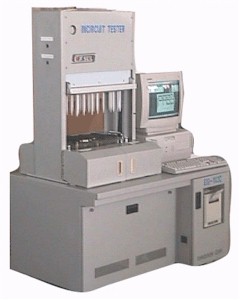

ESI102C ICT

Features
Intelligent test data generator: powerful software simplifies test data generation. Richest measuring methods (option) : Kelvin measurement, relay “ON” test, high voltage zener diode test, etc.. Highest detection rate: high test coverage and measurement accuracy. Automatic self-test function: self diagnostic to check system failure. Test data protection by password: multiple entry level. Data management software: management tools for production improvement. Compatible with other tester: able to use exiting fixtures. Data management by bar-code reader: quick file loading and test results information. Automatic discharge function: improve measurement stability and prevent components damage.
Inspecification
Test Nodes		384pin(Std.) -1024pin(Max.)
Teat Step		Max. 4096 step
Test Item	Open short	Threshold Level:5ohm-4Mohm
	Component	Resistance:0.1-40Mohm
		Low Resistance:10Mohm-10ohm(option)
		Capacitance:10pF-40mF
		Inductance:10 uH-400H
		Diode/Transistor:0.1-40V
		Zener Diode:0.1-40V
		Digital Transistor:Bias=5V ON/OFF
		Opto Coupler:Bias=4V ON/OFF
		Function test:0.1-40V
Test Time	open short test	2ms/point
	Component test	7-25ms/step
Judgement		-99% - +999%
Guarding		Max. 10 points/step
Controller		HDD 540MB,15"color monitor
Dimension		L1040mmW705mmH1381mm
Weight		180kg
