- Raise Your Quality Expectations
-
The WAVE SOLDER OPTIMIZER
- The OPTIMIZER is the most advanced wave
solder process tool in the
- world. It is the only device that accurately measures the critical para
-
- meters at the heart of the wave solder process : The direct interaction
- of the board with the wave. It is also the only device suitable for
daily
thermal profiles.
-
Defect Rates Correlate
With OPTIMIZER Data
|
|
|

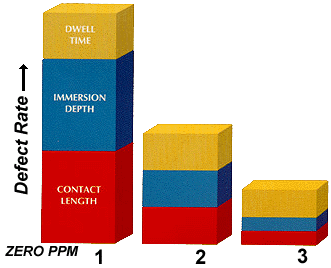

Each bar represents a specific combination
of dwell time, immersion depth
and contact length readings. In this illustration, bar 3 clearly
represents the optimal parameters. The OPTIMIZER is used to identify
such parameters, and then employed daily to ensure the repeatability of
bar 3's data, consistently producing the lowest defect rate. |
What data does the OPTIMIZER provide?
BOARD-WAVE DATA
Main Wave & Chip Wave |
|
TEMPERATURE DATA
Top-Side & Bottom-Side |
 Wave-to-Board
Parallelism
Dwell Time
Immersion Depth
Contact Length
Conveyor Speed |
|
Preheat Temperature
Maximum Temperature
^T (max temp-preheat temp)
Maximum Preheat Slope
Maximum Slope Over Wave |
How do you use the OPTIMIZER
?
-
The OPTIMIZER is
designed fordaily use by operators and engineers. Its unique display immediately provides
you with the results of each run at the touch of a button.
All data is obtained by a single run through your wave solder machine. This information
permits
on-the-spot adjustment of the
wave machine settings. |
 |
