Installation Kit

Fix 32mm straight tube to the most convenient position on the benches, usually at the back or underneath, using 2 cobra clips and screws per length of tube. The tube can be cut to length using a sharp knife or hacksaw.
Push 32mm tube into "O" ring socket if applicable. Use soap or silicon grease to ease assembly. If assembly is difficult use a sharp knife to chamfer tube.
the tubes can be joined together using 100mm lengths of flexible tube cut from the 2.5m length supplied. The flex pushes over the tube to make a vacuum tight connection. Typically clips are not necessary.
The remainder of the flexible tube should be used to connect the unit to the pipe work.
Open ends of pipe run should be sealed by inserting a red end cap into the tube.
At each point along the bench where a soldering iron is to be placed, a 14mm hole should be drilled in the pipe and a clear plug inserted. Care should be taken not to enlarge the hole size as the plug needs to make a tight fit.

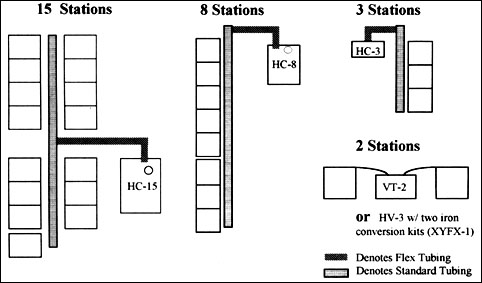

Typical installations for the VT-2 & HC-3 is directly connecting the tip conversion kit via the 4mm tubing to the inlets onn the top of the unit. A full line of iron conversion kits can be found in the accessories section of the XY Plus Fume Extraction catalog.
