TWZ 60
OPTIONAL TWEEZERS FOR SMD REWORK |
TWZ 60 - 24V/60W with 6 pin cibbector
Designed for Models: 136, 136ESD, 137ESD & 988
TWZ50-24V/60W with 5 pin Connector
Designed for Models: XY9-60A & XY9-60D
|
|
|
FEATURES:
- EASY TO USE:
Makes removing SMD chips and flat packs up to 25mm a snap.
- CERAMIC ELEMENTS:
Long life, high insulation heating elements.
- DIRECT HEAT:
Puts the heat where you want it without affecting the surrounding components.
|
SPECIFICATIONS
| Part No. |
TWZ 60 |
TWZ 50 |
Compatible
Stations |
136, 136ESD
137ESD, 988 |
XY9-60A XY9-60D
(from June 1st, 1999) |
| Pin connector |
6 Pins |
5 Pins |
| Heater Output |
24 Va.c. |
24 Va.c. |
| Heater power |
60 W (2x30W) |
| Temperature |
150o - 430o
(320-830oF) |
| Standard Tip |
46-060102 (TZ02) |

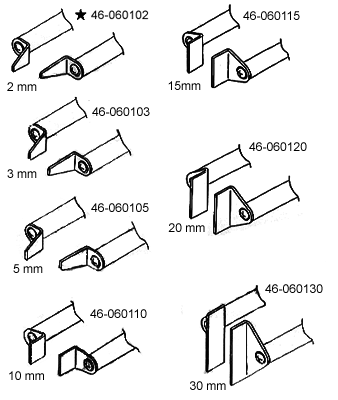

SMD TIP FOR TWZ60
|
